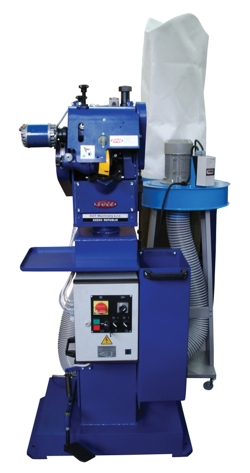

The
machine is used at goodyear welted footwear manufacture
and serves for trimming the excess material on the inner
edge of the welt after its inseaming on the upper and
the rib.
|
TECHNICAL PARAMETERS |
|
Productivity |
up to 150 pair/h |
|
Knife revolutions |
2644/min |
|
Feeding speed |
0,309 m/s |
|
Revolutions of the
grinding wheel |
2650/min |
|
Installed output |
1,5 kW |
|
Machine dimensions |
|
|
width |
780 mm |
|
depth |
800 mm |
|
height |
1610 mm |
|
Machine weight |
320 kg |
|
